Engineering Solution Design
Discover the future of engineering with BlueDAQ, the high-capacity, multi-channel data acquisition device from BlueWare that delivers unparalleled automation to streamline your bench testing, helping you achieve exceptional outcomes with ease.
BlueDAQ as
your Engineering Solution

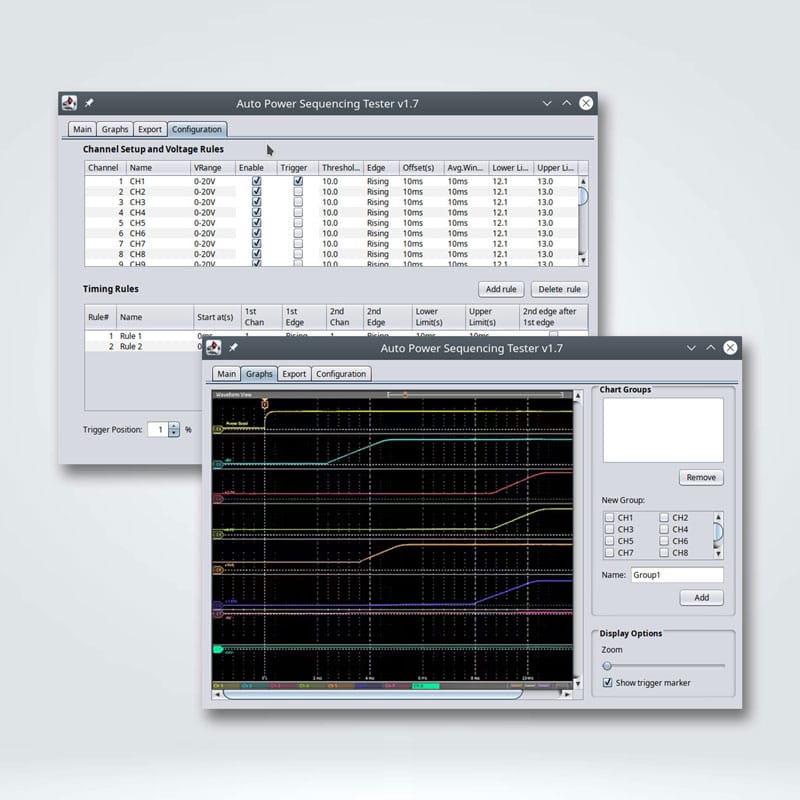

Streamline Industrial Testing and Analysis
BlueDAQ ensures streamlined industrial testing processes through multi-channel sampling, voltage and timing rule checking, and user-defined pass/fail conditions. Its detailed waveform display and automated report generation provide comprehensive analysis and monitoring, while offering precise and accurate data acquisition.

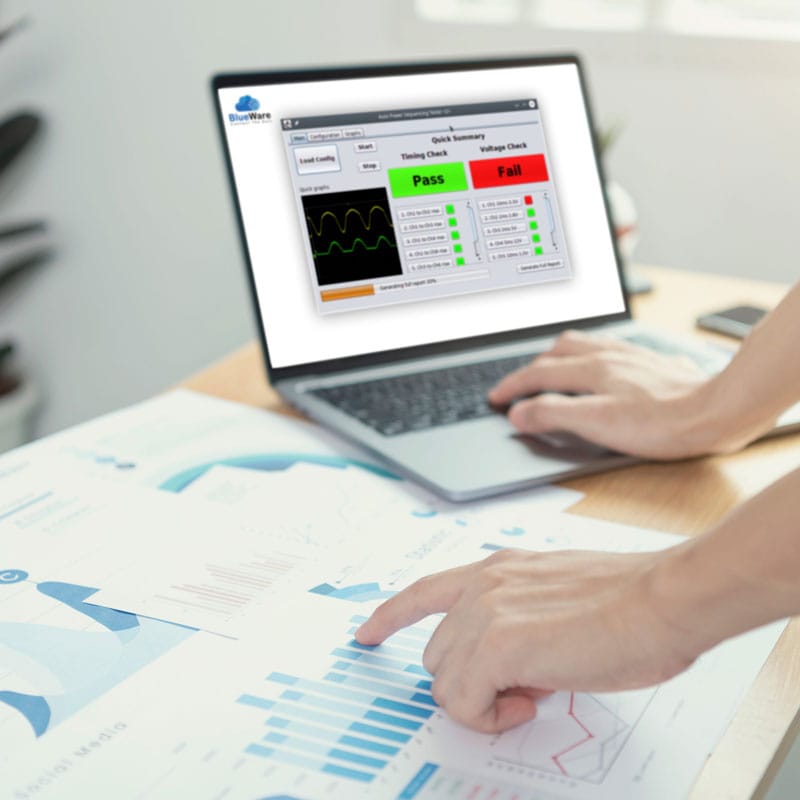

Precise Data Capture Made Easy
BlueDAQ's multi-channel data acquisition, simultaneous sampling, and single channel edge triggering features provide precise and efficient data capture. With user-selectable trigger position, high input impedance, selectable channels, and the ability to store 1-minute of data, BlueDAQ is user-friendly and easy to use.

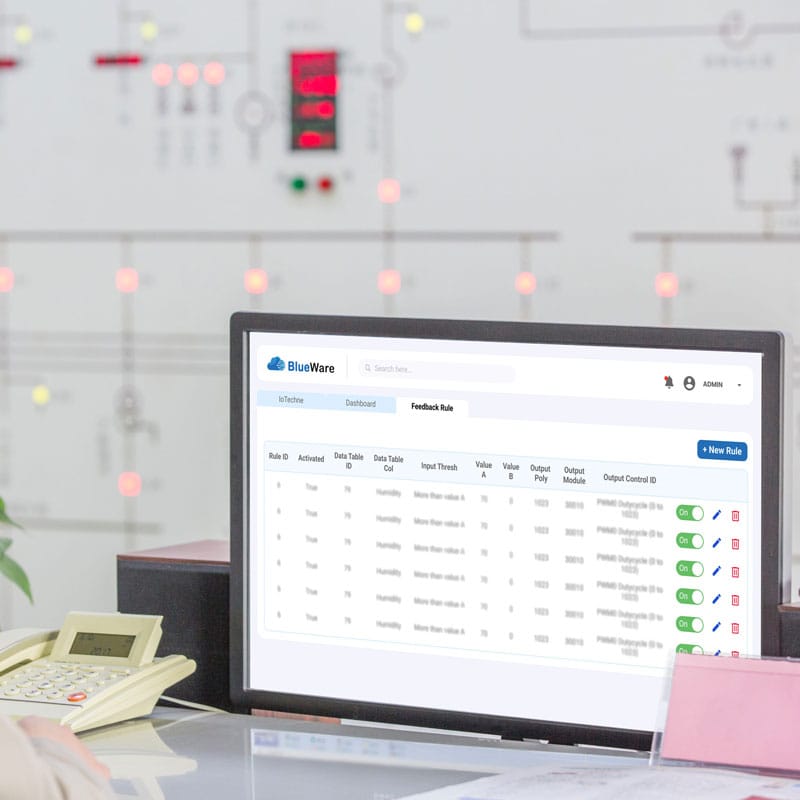

Accelerate Your Industrial Testing Processes
BlueDAQ accelerates industrial testing by providing a fast sampling rate, easy-to-use waveform display, and accurate data analysis through voltage and timing rule checking. It also includes convenient features such as loading/saving config files, generating reports, and saving wave data files.
Hardware Specification:
- Up to 1 MSPS sampling rate per channel
- 8-bit resolution
- 36 channels, single ended only, same ground reference.
- Input impedance at 1Mohm
- 3 input voltage ranges (0-5V and 0-20V and +/-10V)
- Capture and store 1-minute worth of data
- Simultaneous sampling (same clock for all channels)
- 1 Single channel edge triggering (rising/falling), with adjustable threshold and selectable channel
- User selectable trigger position (as 0-99% of total capture buffer)
- Selectable channels for data capturing
Software Specification:
- Load config file, save to config file, arm/disarm(start/stop), generate report, save wave data file
- Individual waveform display for each channel, with vertical/horizontal zoom features
- Detail waveform display tool for advance control/settings
- Selectable time range (max 1-minute)
- User defined pass/fail condition, with profile/recipe settings
- Voltage rule checking features
Profile/recipe settings and configuration:
- Selectable voltage range for each channel (0-5V, 0-20V, +/-10V)
- Timing checking rules: Example: Ch1 rising edge to Ch2 falling edge must be less than 100us.
- Voltage checking rules: Example: Define edge #n (rise/fall) and time window to calculate steady state voltage.
- Edge detection for timing check. Example: Edge threshold prefill with half Vrange (user editable). Same edge used as ADC triggering threshold.
- User specify triggering channel, edge (rise/fall) and voltage threshold(same as above) and voltage delta (amount of voltage change required to register an edge)
- Profile/recipe save features
- Voltage rule checking features
Report generation feature:
- GUI to input report header information
- Auto report in .html / .PDF format
